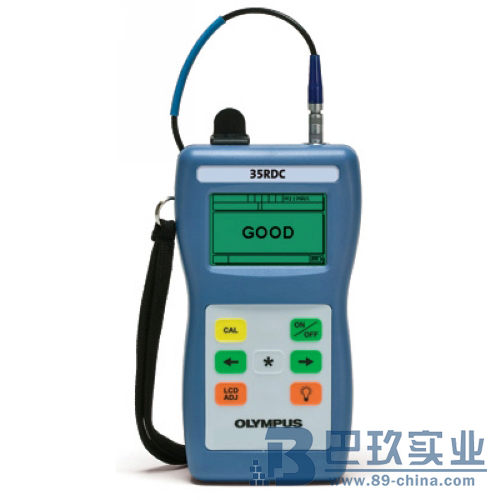

35RDC Specifications*

Display Modes

• Digital Readout Good, Bad or Beyond CAL thickness
• Advanced user setting shows A-scan or waveform. For use by qualified NDT personnel only.

Thickness Measurement Range**:
0.63 mm to 22.8 mm (0.025 in. to 0.900 in.)
** Thickness range depends on material, transducer, and surface conditions.
Material Velocity: Fixed velocity for carbon fiber aerospace composite
Transducer Frequency: 5.0 MHz
Measurement Update Rate: 20 Hz
Deviation alarm set points: Programmable +/- from calibration point. Set in advance setup
Power Supply
Battery: 3 AA alkaline or NiMH batteries
Operating Time: 150 hours typical battery life; 30 hours continuous with backlight on
Low Battery Indicator: Continuously indicates battery status
Battery Saver: Auto Power Off/Continuous On
AC Power Supply: Optional

General

Environmental IP65 compliant: Splash-proof, impact-resistant case. Sealed, color-coded keypad
Operating Temperature Range: -10° C to +50° C (+14° F to 122° F)
Size: (W x L x H)
84 mm x 152 mm x 84 mm (3.31 in. x 6.0 in. x 1.50 in.)
Weight: 0.24 kg (8.5 oz)
Standard Inclusions
Wrist strap, 3 AA batteries, 5 MHz transducer, transducer cable, couplant, carrying case, rubber protective boot with neck strap, instruction manual, two-year limited warranty

Optional Accessories

USB/ADP-115: AC-115 power supply
USB/ADP-230: AC-230 power supply

*All specifications are subject to change without notice.
